The elastic modulus measuring instrument is used together with the pressure tester. During the concrete elasticity modulus test, it is the measuring instrument developed for solving the difficult alignment of test block and difficult reading of deformation quantity.

Patent - a new concrete test block elastic modulus tester

Product composition:

Elastic modulus test stand - it is used for the aligned placement of test block in the scale line, thus avoiding the removal of the elastic modulus test stand. It replaces the traditional elastic modulus tester and saves the setting-out and installation. It can be used alone in combination with your original dial indicator or dial gauge.

Dial gauge - it is used for testing of deformation quantity of the test block.

Wireless adapter - it is used for wireless receiving of dial gauge data.

Wireless transmitter - it is used together with the dial gauge for wireless sending of data.

Wireless elastic modulus measuring instrument

The wireless version consists of the elastic modulus test stand, dial gauge, wireless adapter and wireless transmitter. There is no need to insert and unplug the wire manually. It can be used together with the corresponding system software and can directly read the dial gauge.

The wireless adapter is used for the communication with the digital dial gauge and wireless transmission of dial gauge reading to the IPC.

It is used together with the corresponding system software and can read the dial gauge reading directly.

It can generate the test report and record automatically after the test.

Test method:

The offset of pressure point of axial pressure relative to the center of area of pressure-bearing cross section of the cylinder is calculated with the axial deformation of the cylinder detected by 3 detection points of elastic modulus measuring instrument. The above method effectively solves the difficult alignment of the elastic modulus test block, improves the elastic modulus detection efficiency and guarantees the test precision.

Product advantages:

1. It avoids the removal of test stand and saves the setting-out and installation;

2. According to the test theory with three gauges, it can prompt the offset of the test block, thus facilitating the alignment;

3. It obtains the reading in combination with the software, thus saving the artificial reading operation;

4. It can generate the test report and records automatically through the system software;

5. The wireless version with high configuration can realize the wireless data transmission, thus facilitating the test;

6. It saves the manpower and material resources and improves the work efficiency.

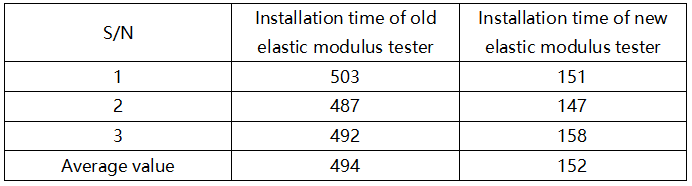

The disassembly and assembly of the new elastic modulus tester developed by our Company is convenient, thus saving the installation time 5.7min effectively. A complete elastic modulus test can save about 17min, greatly improving the work efficiency.
